New 2023 Forest River RV Charleston 36A

Motor Home Class A - Diesel

Stock #43560

Grand Rapids, MI

1 of 24

+24

Sale Price: $374,990
MSRP: $572,167
Save: $197,177

Payments From: $4,458 /mo.

Salesperson

Jason Herrington

Email Jason Herrington

616-625-8029

Sleeps 6
3 Slides
Bunk Over Cab

Outdoor Entertainment

37ft Long
Slate/Satin

See All Specs

Specifications

Sleeps	6	Slides	3
Length	36 ft 11 in	Ext Width	8 ft 4 in
Ext Height	13 ft 1 in	Int Height	7 ft
Interior Color	Slate/Satin	Exterior Color	Constellation
Hitch Weight	15000 lbs	GVWR	39660 lbs
Fresh Water Capacity	103 gals	Grey Water Capacity	66 gals
Black Water Capacity	42 gals	Tire Size	295/80R22.5
Fuel Type	Diesel	Engine	Cummins ISL
Chassis	Freightliner XCR Raised Rail	Horsepower	450 hp
Fuel Capacity	100 gals	Wheelbase	224 in
Number Of Bunks	1	Available Beds	King
Torque	1250 ft-lb	Refrigerator Type	French Door Residential
Refrigerator Size	23 cu ft	Convection Cooking	Yes
Cooktop Burners	2	Number of Awnings	1
Axle Weight Front	15660 lbs	Axle Weight Rear	24000 lbs
Water Heater Type	Aqua Hot Hydronic Continuous	AC BTU	30000 btu
TV Info	LR 49" LED, Bunk 32" LED, BR 43" LED, Ext. 43" LED	Awning Info	17' 5" Carefree Dual Pitch w/ LED Light
Washer/Dryer Available	Yes	Gross Combined Weight	54660 lbs
Shower Type	Standard	Electrical Service	50 amp
VIN	4UZACHFEXMCMR2226

Description

Forest River Charleston 36A Class A diesel motorhome highlights:

Rear Private Bedroom
Bunk Lift
Hide-A-Bed Sofa
Fireplace
Exterior TV

Luxury abounds throughout this motorhome! Starting with the rear private bedroom with king bed slide, a full height wardrobe next to a dresser with a 43" LED TV, and a rear wardrobe that has an area next to it prepped to add an optional stackable washer and dryer. Freshen up each morning in the full bathroom with the full tile shower and the Aqua Magic II with foot flush toilet. Prepare your best home cooked meals with the two burner cooktop then enjoy them comfortably at the dinette with expandable seats and table. The hide-a-bed sofa slide offers a comfortable place to relax while you enjoy the fireplace and the 49" LED TV or you can switch it out for the optional theater seating instead. With a bunk lift over the cab, another guest can enjoy a good night's rest. The exterior TV with radio lets you watch the big game outdoors while breathing in some fresh air!

If you want to travel in style and easily explore the country then you need one of these Forest River Charleston Class A diesel motorhomes! The Freightliner XCR raised rail chassis holds them together and a Cummins ISL 450 HP engine powers them. You will experience a smooth ride to each destination with the independent front suspension, the V-ride rear axle, and adaptive cruise collision mitigation. Each unit will stay protected from the roads harmful debris with the diamond shield front mask protective film and the rust resistant aluminized steel chassis skirts. Some driving features you are sure to appreciate include heavy duty windshield wipers with intermittent function, a mobileye collision avoidance system, and a 10" dash radio with a color back-up and side view camera package, plus navigation to keep you on the right track. Come find your favorite one today!

Features

Standard Features (2023)

Chassis

Freightliner XCR Raised Rail Chassis
Exclusive chassis maintenance Center w/advanced wire/hose routing
Cummins ISL 450HP, 100RPM, 2200GOV RPM, 1250 LB/FT @ 1400RPM
Allison 3000MH 6-speed transmission
120V Engine Heater 1,000W
22.5" Polished Aluminum Wheels
Michelin 295/80R22.5 Tires (36A Only)
Michelin 315/80R22.5 Front, 295/80R22.5 Rear/Tag Tires (45D Only)
Trailer Hitch, 15,000 lb. Capacity
100 gallon, locking dual fill fuel tank (36A Only)
150 gallon, locking dual fill fuel tank (45D Only)
Driver side DEF Fill
Day time running lights
7-Pin tow power connector
18.7 CFM air compressor
Farr Eco-air cleaner
Air filter restriction indicator
Fuel/water separator
Brake line Air Dryer w/Heater
Automatic, heated moisture ejectors
Heavy duty-windshield wipers w/intermittent function
160 amp alternator
Full air ABS brakes w/ auto slack adjuster
Two (2) 1900 CCA at 0 degree Fahrenheit, maint. free
Adjustable suspended brake pedals
Jacobs compression brake
Electronic stability control (ESC)
Automatic traction control (ATC)
Sachs custom tuned shock absorbers
Auto air suspension deflation system
Side radiator cooling package
Brake sync tow system
Push button start
Transmission oil cooler
5 year / 100,000 mile coolant (some maintenance required)
Independent front suspension (IFS) & V-ride (rear axle)
Adaptive Cruise Collision Mitigation
Ultra steer tag axle (45D Only)
Tire pressure Monitoring system (TPMS)

Construction & Exterior

Fiberglass front and rear caps
Full body exterior paint includes slide out end walls
Four (4) point fully auto hydraulic leveling system w/ auto air dump
Steel basement structure
Tru-Brace Anti Camber chassis support system
Rust resistant aluminized steel chassis skirts
Diamond shield front mask protective film
1 Piece Molded Fiberglass Roof
Top-mount remote mirrors w/heat, turn signal & sideview cameras
Frameless dual pane, dark tint windows
Automotive foam and Ziebart seal undercoating
Carefree power door awning
Carefree fully integrated dual pitch patio awning w/led lt & Wind Sensor
Carefree s/o topper w/covers
Full height strut assisted compt doors w/full pass through storage
One Key system, ext-compartment, entry door & fuel fill doors
Quiet integrated A/C intake/ducting roof system
Crowned and layered vacuum bonded fiberglass roof
Vacuum bonded gel coated fiberglass with Azdel backing Sidewalls
Vacuum bonded s/o floor w/fiberglass bottom
Block foam polystyrene insulation in walls, roof and floors
30" Entryway
Heavy duty powered entry step
Channeled drains for A/Cs
Tube steel firewall w/polystyrene insulation
Lighted exterior assist handle
84" interior ceiling height
PTL steel entrance door with deadbolt
Auxiliary air chuck (front driver side compartment)
Auto LED Headlights & Marker Lights
Full length mud flap w/ chrome Charleston name
Slide tray in basement compartment

Electrical

All Electric
50A service, auto transfer w/surge protection & 34' power cord reel
EZ power cord entry
10kW Onan diesel generator w/manual slide tray (36A Only)
12kW Onan diesel generator w/manual slide tray (45D Only)
Energy management system
Electronic house power disconnect switch
Generator start/stop switch (On dash/bedroom)
Multi-plex w/Precision plex app control
Dimmer control lighting throughout
LED lighting package
Decorative bath, dinette & wall lights w/applicable
Individual bed LED reading lights in overhead
2800kW pure sine inverter/converter
Auto generator start control
(6) Six volt deep cycle AGM house batteries w/tray
House Battery Distribution Center (HBC)
Chassis & house battery bank master shut off switches
LED porch & patio lights
Easy read 12v house/Chassis load centers
Automotive chassis fuse panel (front driver side compt)
Ceiling fan in bedroom
Kitchen & living room accent lighting
175w Solar Panel w/mppt controller
Auto cargo lights

Plumbing

Variable speed 4GPM water pump
Individual zoned hot/cold manifold water supply system
4-way water management valve in water bay compartment
Powered hose reel
Bath - Solid surface under mount sink
Kitchen - Stainless steel sink
Full Tile Shower
Whole house water filter
Black water tank flush system
Kitchen single lever faucet w/ pull-out sprayer
Porcelain china bowl toilet w/foot flush
Clean-easy exterior shower hose
Convenience monitor panel in water bay door
Gallons Tank Monitoring
360 Roof vent caps
Tecma-macerator toilet (45D Only)

Driver/Passenger Cockpit

One piece windshield
Power front day/night shades
Passenger & driver window day/night shades
3D Carbon fiber dash panels
Mobileye Collision Avoidance System
Optiview glass instrument panel & transmission mode control
Auto headlight system
Electronic cruise control w/ high idle
Auxiliary Fog lights
10" Dash radio w/ color back-up, side view cameras and Navigation
Villa soft touch wide driver seat, swivel,recline seat w/6-Way pwr adj.
Villa soft touch wide passenger seat, swivel, recline & power foot rest
Driver/Passenger side consoles w/cupholders
Passenger seat workstation
Driver console wireless cellphone charger
Lighted step well
Two (2) Defroster fans w/ high and low settings
Automotive dash AC/heater w/deluxe controls
Multiple auxiliary/USB & 12V charging ports at dash
Power flush floor stepwell cover
Multiple entry assist handles
Driver & Passenger LED ceiling map lights
Emergency/aux engine start switch at dash
Fitted Cockpit floormat w/ "Charleston" logo
Fitted entryway step carpet mats
Keyless entry w/power baggage door locks

Entertainment

49" LED TV, living room
43" LED TV, exterior TV w/bluetooth radio & Speakers
43" LED TV, bedroom
32" LED TV in cockpit overhead
22" LED TV, (2)each bunk w/ easy access HDMI jack (45D Only)
JBL Soundbar w/subwoofer
Roof mount Winegard Trav'ler satellite prep
Park/cable prep
High Definition Cat6 matrix signal distribution
Hi-Definition digital TV antennae
JBL Dash speakers tuned amplifier system
Sirius/XM satellite Ready Radio
Blu-ray DVD Player
Auto WiFi extended range antennae & router

Interior

Matte Finish porcelain tile throughout
Semi gloss hardwood cabinetry w/glazing, interior doors & slide out fascia (Glazing N/A with executive dark cherry option)
Hardwood raised panel cabinet doors w/glazing
Auto wardrobe Lights
Hidden hinges and bar pull style cabinet hardware
Dovetailed drawer boxes
Crown trim - Living/kitchen and Bedroom room ceilings
Hardwood window valances w/accent lighted legs
Soft Touch dream booth dinette (expandable/dinette-36A)
Villa Ultrafab love seat (45D Only)
Villa Ultrafab hide-a-bed sofa
Polished solid surface kitchen and bath countertops
Polished solid surface backsplash
Full extension soft close drawer guides throughout
Galley storage compartment for sink covers
Kitchen Pantry
Bi-fold doors, bunk beds (45D Only)
“Soft Touch” padded ceiling
Roller style day/night shades
Dresser drawers and wardrobe bedroom cabinetry
Power recline master bed
72"x 80" Motorized Tilt Serta king bed w/bedspread & decorative pillows
Contoured overhead cabinets in slide rooms
Bed night stands, w/dual USB jack & overhead cabinetry
Towel bar, toilet paper holder & towel ring
Living room ceiling feature
Electronic safe
LP gas, carbon monoxide & smoke detectors
Fire extinguisher

Appliances

(3)15,000 BTU A/C's (Front & Rear-w/heat pump) (45D Only)
(2)15,000 BTU A/C's w/heat pump (36A Only)
Heated holding tank compartment
Aqua Hot hydronic heat w/continuous flow hot water
Electric heated tile floors
30" OTR convection microwave oven
23 cubic foot french door residential refrigerator w/ice maker
Electric induction glass cook top
Power fan in bathroom w/rain cover
Maxxair in galley w/wireless remote control w/rain cover
Stackable Washer/dryer
Stainless steel dishwasher
Electric fireplace
Central vacuum system

Options

Powered theater seating ilo of hide-a-bed sofa
Trav'ler (Winegard) satellite antennae- Dish Network (US)
Trav'ler (Winegard) satellite antennae- Shaw (Canada)
Basement freezer with pull out tray
600AHR Lithium House Battery W/700w Solar Pkg
2nd Patio Awning Passenger side

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Excellent Customer Service
Just got back from trading in my 2013 Entegra and picking up my new 2019 Entegra. The whole transaction was handled over the phone so I was a little concerned about what I was going to find when I got there.

What a great place to do business. Bob even lent me his car so I could get some lunch! They ... More »

Maury
Excellent Customer Service
Last week we purchased a travel trailer from Terrytown! We worked with luke who was SUPER friendly and helped us find exactly what we were looking for. Luke made the process super easy and was great at communicating with us through the process. No need to shop anywhere else! Excited to try out our new ... More »

Ajla
Excellent Customer Service
A turkey shattered our windshield in Tennessee. After 4 hours of calls and call backs Good Sam, Progressive, and Safelite could not help us locate a mobile windshield provider that serviced Super C’s or there was a 2 week back order due to shortages. We were 14 hours from home on the side of I-65 In ... More »

Scott

We are here to help, call us at
616-625-8037 or Contact Us

We are here to help!

616-625-8037
Contact Us
Claim Deal Now

Motorhomes 2 Go is not responsible for any misprints, typos, or errors found in our website pages. All prices and payments
listed exclude sales tax, title, license, administrative processing, dealer prep and delivery fees. Manufacturer
pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @616-625-8037
for availability as our inventory changes rapidly. All calculated payments are an estimate only, do not constitute an
offer of credit, and are subject to lender approval. Actual loan terms will vary depending on your specific credit
situation. Advertised sale price is applicable only with indirect finance contract arranged by dealership.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2023 Forest River RV Charleston 36A

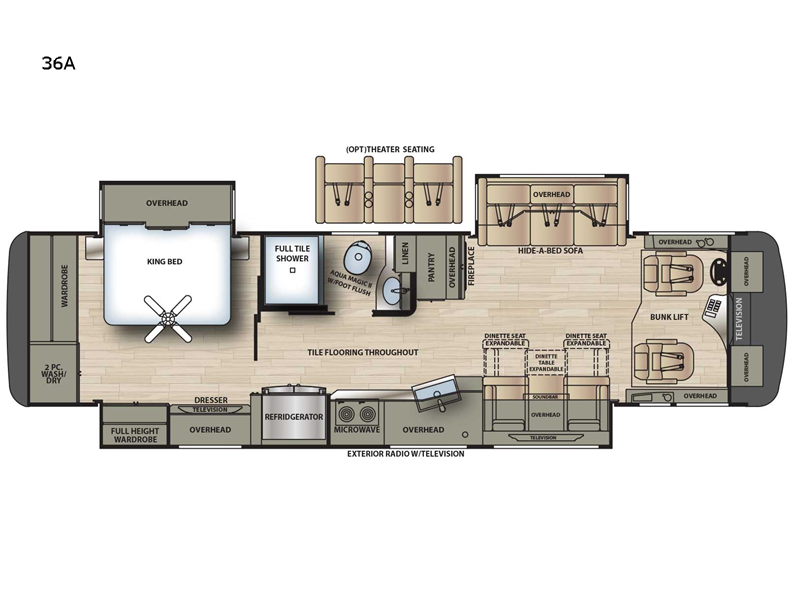

36A Floorplan

Specifications

Description

Features
