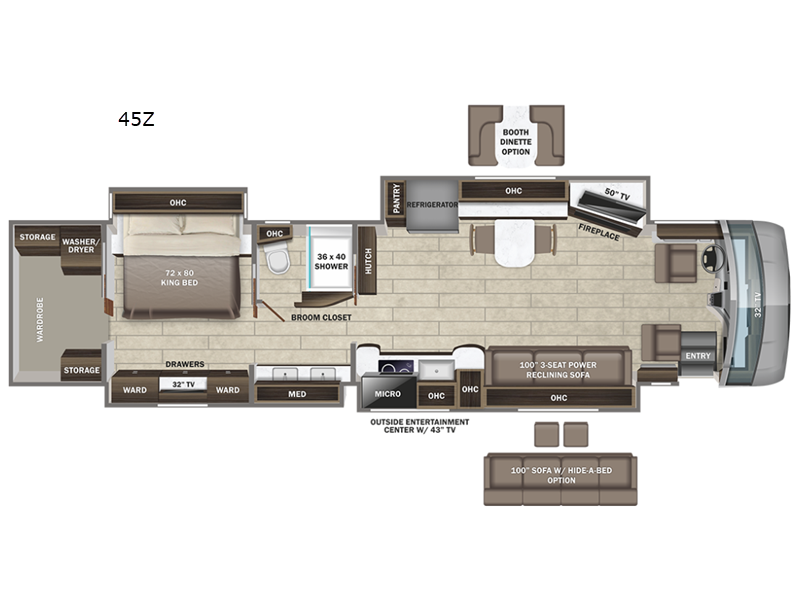

New 2024 Entegra Coach Cornerstone 45Z

Standard Features (2024)



Chassis

• Spartan® K3 raised-rail chassis
• Cummins® 15 liter X15 turbocharged 605 HP engine 1,950 lb. ft. torque at 1,150 RPM
• Allison® 4,000 MH 6-speed transmission
• Side-mounted, parallel-airflow radiator
• 210 amp alternator
• 1,500 watt engine block heater
• Three-stage engine brake
• Meritor® front axle with independent front suspension, integrated anti-sway bar and custom-tuned Koni® shocks- 20,000 lb. rating
• Dana® rear axle- 20,000 lb. rating
• Reyco® Granning® passive steer tag axle with air dump- 14,000 lb. rating
• All-wheel ABS disc brakes
• 4.30 rear axle ratio
• Michelin® 365/70R 22.5” tires (front) and 315/80R 22.5” tires (rear)
• Tire pressure monitoring system (TPMS) with temperature monitoring
• Automatic traction control
• Equalizer hydraulic automatic coach leveling
• Valid Truline air leveling system with auxiliary air compressor
• Remote air connection
• (2) 12V chassis batteries
• 150 gal. fuel tank with dual fills
• 15 gal. DEF tank with dual fills (single fill on 45R)
• Spartan® Safehaul tow vehicle air brake system
• 20,000 lb. hitch with 7/4-pin plug
• Independent front suspension (IFS)
• Custom-tuned Koni shocks

Construction

• 4 in. arched aluminum trusses filled with batt insulation and reflective Flexfoil® topped with 3/8 in. plywood decking then one-piece fiberglass
• 2-1/2 in. exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16 in. centers or less, filled with batt and Flexfoil® insulation, then covered with high-gloss gelcoat fiberglass (R-16)
• 2 in. x 4 in. wood trusses on 16 in. centers or less filled with batt and Flexfoil® insulation then topped with 3/4 in. 7-ply plywood decking (R-33)
• X-Bridge™ bracing welded into chassis frame
• Entegra-exclusive Relia-Torque flush-mounted 12V slideout system

Heat, AC, Water & Power

• Aqua-Hot® heated basement storage
• Onan® 12,500W diesel generator, with automatic start, on powered slide-out tray
• 3,000W pure sine wave inverter
• 4) L16 AGM batteries (6V/390 amp hrs. ea.)
• (2) 200W solar panels
• 50 amp power cord on electric powered reel
• Smart automatic transfer switch with surge protection
• 3) 15,000 BTU A/C units with heat pumps and condensation drain system
• Aqua-Hot® 450D hydronic water and heating system with in-floor heat throughout and engine preheat
• Sani-Con® macerator holding tank dump system with power gate valves and manual backup
• Black tank flush; Grey tank flush
• Tilt tank dump
• City and tank water filtration system
• Hot and cold water hook-up in front cap area with 30 ft. quick-disconnect hose
• Water hose with electric reel

Exterior

• Insulated front and rear caps (R-24)
• Executive Bus Armor 10 in. stainless steel trim
• Power rear engine door with manual override
• Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights
• Girard® power entrance door awning with LED lights
• Girard® Ultra slideout awnings
• Girard® Ultra power window awnings
• Frameless, dual-pane, tinted, safety-glass windows
• Lit grab handle with doorbell and keypad system for keyless entry
• 43 in. Samsung® QLED 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL® radio and speakers with USB port and receptacle
• Chrome, heated, remote-control, side-view mirrors with blind-spot indicators
• Diamond Shield™ front protective film mask
• Automatic LED high and low beam headlights and fog lights
• Halogen fog lights
• Automatic daytime running lights
• LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
• LED accent lights under passenger slideout rooms
• LED-lit chrome clearance accent light
• Porch light and motion sensor security lights
• Mudflap with chrome "Entegra" nameplate
• Starlink satellite internet system
• Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
• Winegard® TRAV’LER Pro satellite dish Shaw TV - standard with CSA option
• Winegard® Rayzar Automatic powered TV antenna
• Winegard® WiFiRanger™ Wi-Fi extender
• Heated exterior utility center with 5 in. LED Firefly® tank monitoring panel
• (2) power slideout basement storage trays
• 2.8 cu. ft. exterior refrigerator/freezer on slideout tray
• Push-button, power-unlatching baggage doors with LED indicator light
• Sikkens custom full-body paint
• Removable screen on entry door

Cockpit

• Collision avoidance system with collision warning, adaptive cruise control and electronic stability control
• Bergstrom dual-zone HVAC system; Dual USB port and one 12V socket for charging
• Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics and ability to display traditional instrument cluster, 360° camera system or GPS navigation
• Delta Mobile Systems® aiDARS™ 1X active 360° surround view system with 14 smart radar sensors and 6 HD cameras displayed on digital dash screen
• Valid™ infotainment system with 15 in. touchscreen, Sygic navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control, house mode whole-coach audio distribution and integrated VegaTouch coach control
• 4.3 in. infotainment control touchscreen in passenger console
• E-Z Steer™ adjustable power steering assist
• Leather Steering wheel with integrated controls for screen selection, instrument cluster navigation, media source selection, cruise, wipers and Bluetooth® phone functionality
• Power tilt and telescoping steering column
• JBL® premium audio 11-speaker sound system with amplifier, speakers and DVC subwoofer
• All-in-one automotive antenna for AM/FM/Sirius/GPS dash radio system
• Ultra-Vision® one-piece wrap-around tinted windshield; Rain-sensing windshield wipers
• Heated and cooled leather driver and passenger seats with powered 6-way adjustment, lumbar, recline, footrest and massage functions
• Powered driver's window; Powered flush stepwell cover
• Powered adjustable brake and accelerator pedals
• Powered front sun visors and privacy shades

Interior

• LED-lit fireplace with 5,000-BTU heating element (45B, 45Z)
• 32" Samsung® QLED 4K UHD Smart TV in front overhead
• Firefly multiplex system with 10” VegaTouch touchscreen for complete integration of coach controls, with remote monitoring and control (mobile app available)
• Spyder 3.5 in. touchscreen switches throughout
• 50” Samsung® QLED 4K UHD Smart TV
• Bose® sound bar with subwoofer and universal remote control
• Sony® Blu-ray™ player
• Premium leather Crown Compass furniture
• Hand-laid porcelain tiled floors
• LED interior lighting
• Decorative ceiling feature with integrated accent lighting
• Powered solar day and blackout night shades
• Central vacuum system
• Aire-Secure™ travel locks for all pocket doors
• Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (45R only)
• Separate washer and dryer
• Bunks with industry-exclusive 300 lb. capacity each (45R)

Kitchen

• Window with push out lever operation and screen
• Stainless steel residential refrigerator
• Induction cooktop with matching wood cover
• 1.9 cu. ft. convection microwave oven
• Fisher and Paykel Dishwasher
• Solid-surface countertops with dimmable LED accent lighting
• Blanco single bowl granite sink
• Filtered water dispenser at kitchen sink
• Maxxair power vent exhaust fan with intake and touch screen control
• Large deep drawer for waste basket with easy access trash chute (trash chute not available in 45F, 45R)
• Pantry with pull-out shelves; slide-out storage tray(s) in overhead cabinet

Bedroom

• Personal Comfort A5 king-size mattress
• 32” Samsung® QLED 4K UHD Smart TV
• Bose® sound bar with universal remote control
• Sony Blu-ray player
• Ceiling fan
• Nightstands with solid-surface tops
• Large cedar-lined wardrobe with automatic light

Bathroom

• Solid-surface countertops with dimmable LED accent lighting
• Integrated glass sink
• Porcelain tile shower walls and floor with skylight and frameless glass shower door
• Teakwood shower seat
• Pivoting shower head and separate hand-held spray wand
• Aqua View Showermiser water saving system
• Thetford macerator toilet in main bath; Thetford macerator toilet in mid bath (45D, 45R, 45W); Thetford Aria china toilet in mid bath (45B)
• Maxxair® Deluxe power exhaust vent fan with intake

Safety

• Carbon monoxide detector
• Smoke alarm
• Security Safe

Options

• Dinette booth ILO freestanding table and chairs
• Fireplace/entertainment center/work station ILO sofa (45D, 45W only)
• Theater seating with power recline and fixed center console ILO hide-a-bed (45R only)
• 100 in. hide-a-bed sofa ILO 100 in. power reclining sofa (45B, 45Z only)
• Sofa ILO power theater seating (45D, 45W only)
• Delete dishwasher - replace with 2 drawer cabinet
• Wood headboard ILO fabric
• Sleepmade memory foam mattress ILO Personal Comfort a5 mattress
• Winegard® In-motion satellite dome ILO TRAV'LER
• Winegard TRAV'LER satellite dish- Dish Network ILO DIRECTV
• Canadian standards (includes Canadian Shaw satellite)

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
