Used 2016 DRV Luxury Suites Mobile Suites 38 RSSA

Fifth Wheel

Stock #44089

Grand Rapids, MI

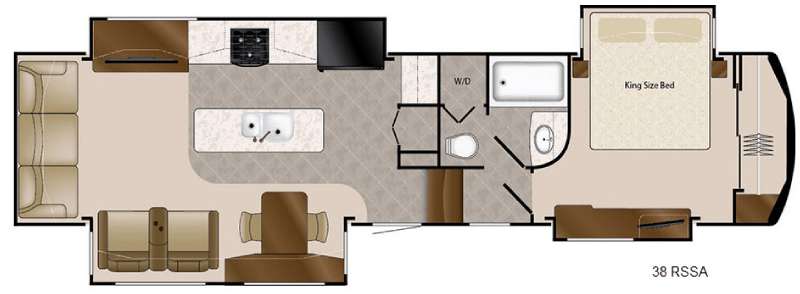

Floorplan - 2016 DRV Luxury Suites Mobile Suites 38 RSSA

1 of 24

+24

Salesperson

Ryan Bordewyk

Email Ryan Bordewyk

616-625-8039

Sleeps 4
4 Slides
Rear Living Area

Kitchen Island

39ft Long
16,300 lbs

See All Specs

Specifications

Sleeps	4	Slides	4
Length	39 ft 1 in	Ext Width	8 ft 5 in
GVWR	19000 lbs	Dry Weight	16300 lbs
Fresh Water Capacity	100 gals	Grey Water Capacity	75 gals
Black Water Capacity	50 gals	Tire Size	17.5"
Furnace BTU	40000 btu	VIN	5KEFA382XG1007851

Features

Standard Features (2016)

Frame / Running Gear

Goodyear^® 17 1/2" H-Rated Re-Groovable Tires
Heavy Duty Grease Bolt Shackles with Bronze Bushing
Kodiak^® Automotive Disc Brakes
MOR/ryde^® LRE Rubber Equalizer Suspension
Heavy Duty 8,000 Lb. Rated Axles
Commercial Grade EZ Lube Hubs
15" Triple Stacked Box Tube Frame
101" Wide Body
Industrial Hydraulic System for Jacks and Lower Level Slides
Electric Bedroom Slide
Slide Outs with Select Push Button Controls
Pinless, Industrial Hydraulic Front Landing Jacks at 5 Degree Outboard Angle

Construction: Floor

3" Thick Floor
14" O.C. Floor Aluminum Floor Joists
Screwed and Glued Joist Construction
5/8" Tongue and Groove Plywood Flooring
Four Season Perimeter Heat Ducting in Floor
Residential Rated R29 Formaldehyde Free Wool Insulation

Construction: Walls / Slides

3 1/4" Thick Walls/Slides
16" O.C. Stud Spacing
Screwed and Glued Aluminum Stud Construction
1/4" Monsanto^® Fome-Cor Vapor Barrier (Eliminates Condensation)
1/4" Thick High Gloss Gelcoat Fiberglass with Wood Backer
Residential Rated R16 Formaldehyde Free Wool Insulation

Construction: Roof

16" O.C. Rafter Spacing
Residential Rated R25 Formaldehyde Free Wool Insulation
1/2" Plywood Roof Overlayment
Seamless, 1-Piece Rubber Roof
Soft-Touch Vinyl Ceiling, Including Interior Slide-Out Ceilings

Exterior

Straight Roof Line with 8' Tall Interior Slide Out Height
Subzero Thermo-Pack High Density Wool Insulation
High Gloss Oyster Colored Gelcoat Fiberglass
High Gloss Gelcoat Fiberglass Molded Caps
Custom Painted Exterior
Frameless Tinted Safety Glass Windows
Four Exterior Security Lights
Back-Up Lights with 50 Watt Halogen Lights
Commercial LED Exterior Clearance Lights
Red LED Turn Signal
LED Docking Lights
78" Entry Door
Removable Storm Door Panels
Metal Slam Door Compartment Latches
Extra Thick Compartment Doors with Gas Struts
Easy Access Light Switches for Basement
Washable Storage Compartment Liner
Custom Enlarged Control Center with LED Lighting
Lend-a-Hand Exterior Grab Handle
Power Awning with Aluminum Weather Shield
Water Pump Switch at Outside Hookup Center

Systems / Tanks:

50 Amp Service with Detachable Cord
80 Amp 12 VDC Converter
100 Gal. Fresh Water Tank
75 Gal. Grey Water Tank with Power Flush
50 Gal. Black Water Tank with Power Flush
SeeLevel Tank Monitoring System on All Tanks
Residential Pex Water Lines
Exclusive Copper Water Manifold with Individual Shut-Off Valves
Whole House Water Filtration System
Anderson Multi-Switch Water Bypass System
Slide Out Propane Tray with Dual 40 Lb. Tanks
12VDC Battery on Pull Out Tray
12 Gal. Gas/Electric DSI Water Heater
40,000 BTU Furnace with Custom Plenum
Residential 5 Duct Heating System with 6" Ducting
Forced Heat Ducting to Tanks/Water System
Fully Ducted A/C System with Cold Air Return
15,000 BTU Low-Profile Main A/C
Wired and Ducted Bedroom A/C with Cold Air Return
Triple 15,000 BTU Low-Profile A/Cs (All 43/44' Models)
Solar Prep
HD Roof Satellite Prep for Dual DVR Receivers
HD Ground Satellite and Cable Prep
Power TV Antenna

Interior: Luxury Living Room / Dinette

Hand Laid 16 x 16 Vinyl Floor Tile
Residential Rebond Carpet Pad
Plush Residential High Durability Nylon Carpet
Honey Cherry/Mocha Cherry Hardwood Solid Cherry Cabinetry
Hardwood Solid Cherry Fascia Trim Around Slide Outs
Hardwood Solid Cherry Cabinet Stiles (Pocket Drilled/Screwed)
Concealed Cabinet Door Hinges
Raised Panel Cabinetry
Soft-Close Full Extension Metal Drawer Guides
LED Interior Ceiling Lighting on Dimmer Switches
Decorative Wall Clock
Utility Closet with Coat Storage and Centralized Control Station
Interior Ceiling Fan
Decorative 110V Light Sconces
Custom Hardwood Dinette Buffet with Solid Surface Top
Dinette Table with Hidden Leaf Extension
(2) Hardwood Dinette Chairs with Fabric Accent
Day/Night Pull Down Pleated Shades
Crown Molding Throughout
HD Wiring Throughout
Franklin Full Width Sofa with Hide-a-Bed
Franklin Theatre Seating with Center Console (Side Entertainment Models)
Franklin Recliners (Rear Entertainment Models)

Interior: Gourmet Kitchen

20 Cu. Ft. Residential Stainless Steel French Door Refrigerator
Stainless Steel GE Profile Convection/Microwave
Stainless Steel Residential Dishwasher
Pull-Out 13 Gal. Garbage Can
Double Deep Bowl Stainless Steel Sink with Sink Covers
Residential Goose Neck Faucet with Pull-Out Sprayer
Custom Made Porcelain Backsplash with Hand Laid Tile
High Polished Corian^® Countertops
LED Lighted Corian^® Edging Around Island
Sealed 3 Burner Cooktop with Hinged Power Countertop Lift
Custom Appliance Garage with Pull-Out Tray (Most Models)
Custom Over the Island Wood/Glass Accent Lights
Lighted Pantries and Kitchen/Bathroom Toe Kicks
Lighted Ceiling Soffit with Crown Molding and LED Accent Lighting

Interior: Master Bath / Hallway

Hardwood Steps
Hand Laid 16 x 16 Tile in Hallway/Bathroom
No Carpet in Hallway
Washer/Dryer Prep
Heat and A/C Ducting in Bathroom
MaxxAir^® Fan in Bathroom (Exhaust Only)
1-Piece Fiberglass Shower with Molded Seat
48" 1-Piece Fiberglass Shower with Molded Seat (Some Models)
Sky-Light Over Shower with LED Pot Light
Porcelain Toilet with Water Saver Spray
Macerator Toilet (Some Select)

Interior: Master Bedroom

Custom Walk-in Front Closet with Built in Dresser
Real Cedar Lined Front Closet
Custom Hardwood Wardrobe Doors
King Bed Suite 72" x 80" with Innerspring Mattress
Queen Bed Suite (Standard 32 Models)
Full Storage Under Bed Base
Separate Bedroom Ceiling Speakers
Over the Bed Reading Lights on Separate Switches
Solid Surface Tops of Nightstands

Full Timer's Package (Forced Option):

55" Samsung® LED TV and Home Theatre Package
32" Samsung® LED Bedroom TV Package
15 BTU Ducted Lo/Pro Bedroom A/C
Whole House Central Vacuum
Goodyear® 17 1/2" H-Rated Spare Tire and Carrier
2" Receiver Boat Hitch with 7-Way Plug
Manual 4-Step Entry
Detachable Ladder Only
Frameless Thermopane Windows

Traveler's Package (Forced Option):

MCD Day/Night Roller Shades
Built-In Fireplace
Magnum 1000W Inverter with Dual 6V Batteries
Maxxair® Fan with Rain Sensor - Bathroom
Maxxair® Fan with Rain Sensor - Kitchen
Power Management System
Six Point Hydraulic Leveling System
One Touch Auto Leveling
MORryde® I.S. Suspension with MORryde® Pin Box
Keyless Entry Door

Options

Cabinetry (Standards)

Honey Cherry
Mocha Cherry

Decor (Standards)

Camden
Kashmir
Milan

Flooring (Standards)

High Ounce Nylon Carpet
Hand Laid 16 x 16 Floor Tiles

Countertop (Standard)

High Polished Vernazza

Interior

Power Recliner Theatre Seating/Recliners

Entertainment

60" Samsung® LED HDTV (N/A on 34 RESA) (Rear Entertainment Models Only)
32" Samsung® LED HDTV Outdoor Entertainment
Winegard® Trav’ler HD Auto Satellite
WiFi Ranger Wireless Router

Kitchen

3 Burner Range/Oven IPO 3 Burner Cooktop

Bedroom

Built in Front Wardrobe Safe with Keyless Entry
Queen Bed Suite (Standard 32' Models)
Honey Cherry Folding Chair
Mocha Cherry Folding Chair
Sleep Number^® Bed by Select Comfort
Vanity Slide in Front Bedroom (Standard on Some Models) (N/A on 32' MS)

Systems / Vents / Fans:

15 BTU Ducted Lo/Pro AC – Bedroom
Heat Pump
MaxxAir^® with Switch Control – Bedroom
Splendide^® Front Load 2 piece
Splendide^® XC 2,100 Combo
Generator Prep-Auto Change Over
Onan^® 5,500 Marquis Gold Generator with Prep
Magnum 2,800 Watt Inverter with Four 6V Batteries
Surge Protector with Voltage Protection and Remote Display
Heat Pads on All Tanks with Elbow Heater on Drain Pipe

Construction / Running Gear

Power 4-Step Entry (Exclusive)
Power Cord Reel (N/A on 34 RESA)
HBA Brake Cam (To be Ordered Special for Customers with GM Trucks)

Exterior / Awnings:

Slide Toppers
Power Dinette Patio Awning with Weathershield
Slide Out Storage Tray (36" x 90")
Audible Wireless Backup Camera System
RVIA
CSA

Fully Body Paint (Options)

Crimson Dusk
Shadow Birch
Copperbay
Silver Sands

See us for a complete list of features and available options!

All standard features and specifications are subject to change.
